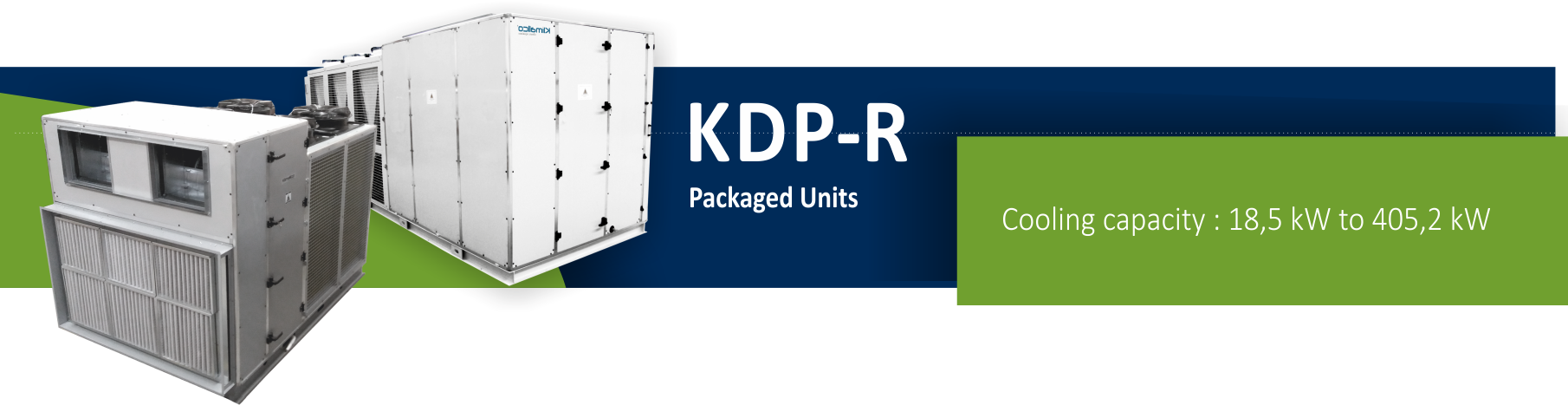

KDP-R (Cooling) 18.5kW - 405.2kW R407c/R134a/R410a

KDC-B  R407c
KDC-C  R134a
KDC-D  R410a

Description

The KDP air cooled condensing unit series is available in cooling only versions able to cover a wide capacity range with models from 18.5 up to 405.2 kW.
The Klimallco KDP series covers all the technological and high aisthetic demands of the market. The units are completely factory assembled, tested and ready for installation.

Features

• Operating up to 52^oC ambient temperature (R134a).

• Assembly: Fully bolted/welding free

• Compressor: Scroll, Tandem Scroll and Screw

• Safety and functional devices:

- high/low pressure manometers or pressure transmitters

- service valves - pressure switches

- TXV or electronic expansion valves

- phase sequence - phase failure - reverse phase and voltage - monitoring device

- contactors, relays, fuses for fans and compressors

- digital controller.
